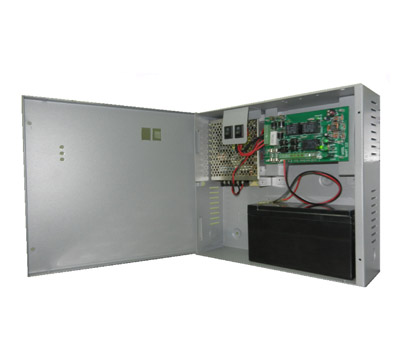

1210MCU Door Access Power Supply
Built in Door Access Cum Battery Back-Up System
Built in Energy saving with long back-up time features
Features
- Switchmode battery charger always on float charge operation and therefore effectively protects battery against overcharging and will remain fully charged.
- The battery will be automatively recharged on return of the mains supply.
- Built in low voltage cut-off feature, easy handling, compact size and light weight.
Standard three LED's for status indication
- Green LED : Mains On (AC supply available)
- Green LED : Charge (Charging of battery)
- Green LED : Load Output (Load output available)
Applications (please refer to O & M for operation)
- Door Access System (12V3A Standard Features)
* Back-up 1X EM600ibs, 1X Reader (3 to 4 h)
- Built in Tamper switch input
- Built in Exit push button system
- Built in External input system for double secuirty door access.
- Long battery back-up with advance technology
Protection
The battery charger is protected against overload by current limiting device, battery and load output fuse.
Environmental
Temperature : 10 to 40 degC
Humidity : 0 to 95 % non-condensing
Enclosure
Mild sheet metal treated with chemical rust inhibitor and rust resisting primer coat.
Finishing: Epoxy powder coated

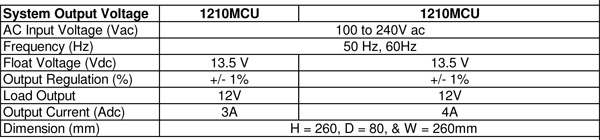

AC Input Supply
Single phase : 100 to 240 Vac 50/60 Hz
DC Output Voltage & Current
12Vdc 3A & 4A
